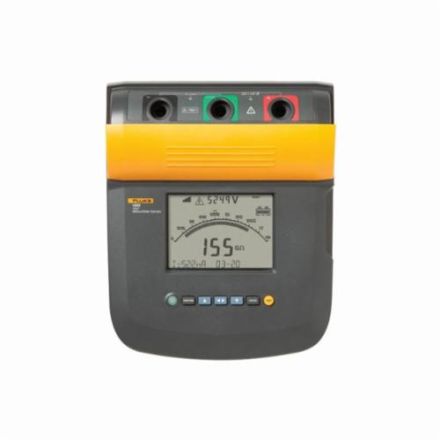

Kit Testeur Isolement Fluke 1555/KIT - 50V-10000VDC - 2TO - LCD 75x105mm
- GLD# FLUKE-100059
- MFG# 3665111
- UPC 095969550970
Min. Order Qty 1
Description
Testeur disolement Fluke, 50 à 10000 VCC, 1 à 2 ma, fréquence 50/60 HZ response, résistance de 200 kohms à 2 tohms, résistance de 2 ohms, -0 %/+10 % à 1 ma précision, 1 min de réglage/1 sec de résolution dindication, 75 x 105 mm écran lcd, cote de sécurité : cat. Iii 1000 v/cat. Iv 600 v, oui arrêt automatique, 12 VCC source dalimentation batterie rechargeable au plomb, interface port pc, ip40 boîtier, dimensions 269 x 277 x 160 mm
Specifications
| UNSPSC | 41113624 |
|---|---|
| Accuracy | -0%/+10% at 1 mA |
| Dimensions | 269 x 277 x 160 mm |
| Display Type | 75 x 105 mm LCD |
| Amperage Rating | 1 to 2 mA |
| Resistance | 2 Tohm |
| Safety Rating | CAT III 1000 V/CAT IV 600 V |
| Voltage Rating | 50 to 10000 VDC |
| Power Source | 12 VDC Lead Acid Rechargeable Battery |
| Resolution | 1 min Setting/1 sec Indication |
| Enclosure Type | IP40 |
| Interface | PC Port |
| Auto Power Off | Yes |
| Frequency Response | 50/60 Hz |
| Resistance Range | 200 KOhm to 2 TOhm |
Features
- Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 VAC or DC for increased user safety
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
