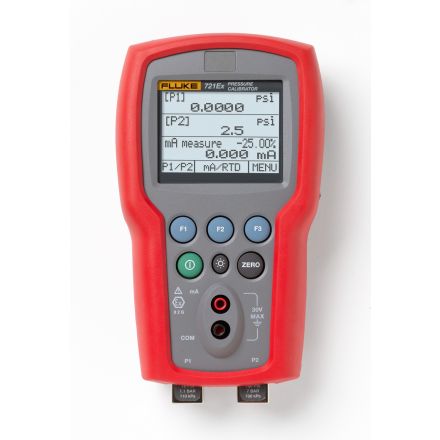

Calibrateur Pression Double Capteur Fluke FLK-721EX-1603 - 16/300 PSIG - ±0.025%
- GLD# FLUKE-100784
- MFG# 4353309
- UPC 095969673884
Min. Order Qty 1
Description
Calibrateur de pression Fluke, capteur double, gamme : 721ex, pression de 16/300 psig, 0.001/0.Résolution de 01 lb/po-ca, +/-0.025 % de précision, 4.3 po largeur, 2.3 po profondeur
Specifications
| UNSPSC | 41112414 |
|---|---|
| Application | For gas flow calibration applications |
| Accuracy | +/-0.025% |
| Series | 721EX |
| Type | Dual Sensor |
| Pressure Rating | 16/300 psig |
| Depth | 2.3 in |
| Resolution | 0.001/0.01 psi |
| Width | 4.3 in |
Features
- Can be configured by selecting either a 16 or 36 psi low pressure sensor then add any of 7 high pressure ranges including 100 psi, 300 psi, 500 psi, 1000 psi, 1500 psi, 3000 psi or 5000 psi
- (2) isolated, stainless steel pressure sensors
- Switch test on both pressure inputs
- Pressure displayed in the user's choice of 19 engineering units
- Precision temperature measurement with optional RTD probe
- Measures 4 to 20 mA signals
- Large backlit graphic display shows up to three inputs simultaneously
- Store five instrument setups for recall and use
- +/-0.025% high/low pressure sensor accuracy
- 0.001 psi low pressure sensor resolution, 0.01 psi high pressure sensor resolution
