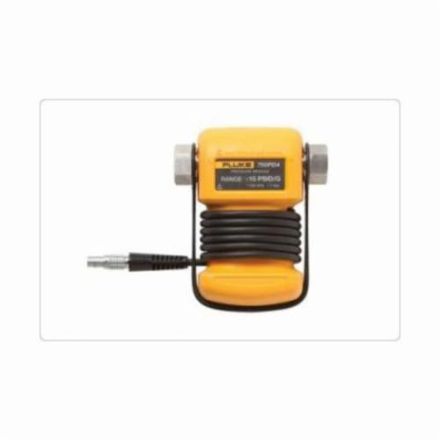

PRESSURE MODULE 0 TO 15 (0 TO 1 BAR) (0 TO 100 KPA)
- GLD# FLUKE-100198
- MFG# 4352324
- UPC 95969673341
Min. Order Qty 1
Specifications
| UNSPSC | 41113600 |
|---|---|
| Pressure Rating | 0 to 15 psi |
| Series | 750P |
| Size | 110 mm L x 94 mm W x 45 mm H |
| Suitable For Use With | 717, 718, 719 series, 725 and 726 Series Fixed Resolution Product |
| Total Uncertainty | 0.025% |
| Type | Differential |
Features
- 0.025 % reference uncertainty
- temperature compensated 0 to 50 deg C
- Digital communication to calibrators, no analog losses or errors
- Broad selection of ranges
- Gage, differential, dual range, absolute and vacuum measurement models
- Urethane overmoulding protection
- Non-corrosive gasses indicates dry air or non-corrosive gas as compatible media, "Stainless Steel 316-SS" indicates media compatible with type 316 stainless steel
- 4X burst rating refers to the multiplier times full scale of the module for the rated burst pressure
