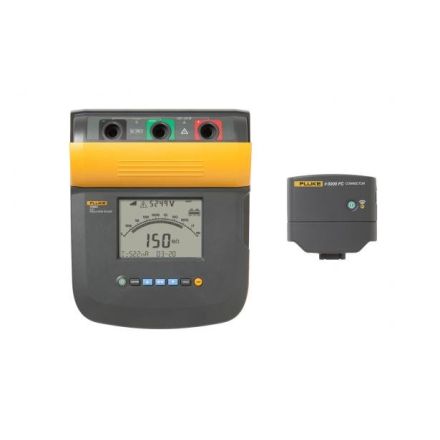

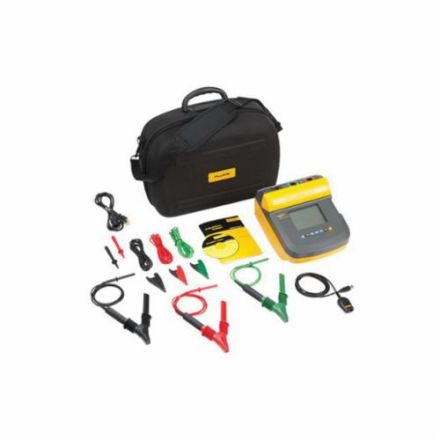

Kit Testeur Résistance Isolement Fluke 1550C/KIT - 5 Pièces - Plastique
- GLD# FLUKE-100056
- MFG# 3665127
- UPC 095969550987
Min. Order Qty 1
Description
Kit de testeur de résistance disolement Fluke, spécifications : cat. Iii 1000 v, cat. Iv 600 v, 10000 VCA, 200 kohms à 2 ohms, écran 75 x 105 mm, boutons/interface enfichable, 5 pièces, plastique, 13 x 9.5x6.7 po dimensions
Specifications
| UNSPSC | 41113624 |
|---|---|
| Application | For validate general circuits, such as switchgear, motors and cables |
| Material | Plastic |
| Specifications | CAT III 1000 V, CAT IV 600 V, 10000 VAC, 200 kOhm to 2 Ohm, 75 x 105 mm Display, Buttons/Plug-In Interface |
| Dimensions | 13 x 9.5 x 6.7 in |
| Number of Pieces | 5 |
Features
- Digital insulation testing up to 10 kV
- Redesigned Fluke® 1550C insulation resistance tester, offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of dielectric absorption (DAR) and polarization index (PI) with no additional setup
- Ramp function for breakdown testing
- Timer settings up to 99 min for timed tests
- Guard system eliminates the effect of surface leakage current on high resistance measurements
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- 75 x 105 mm LCD, digital LCD/analog display
- 2 deg pollution, -20 to 50 deg C temperature rating, IP rating IP40
