FORET 1 IN MT3
- GLD# 4282166172680149000
- MFG# C68834
- UPC 697334688341
Qté min. de commande 1
Description

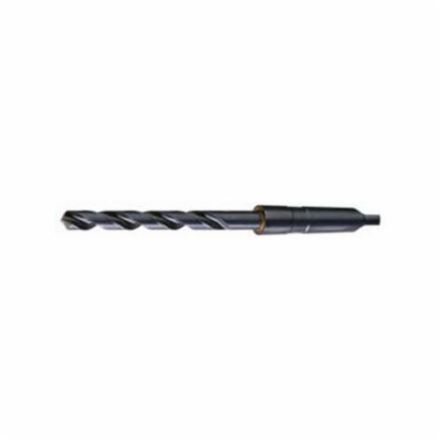

Cle-Force foret à queue conique foret, Hélice ordinaire, gamme: 1682, impérial, 1 po foret - fraction, 0,0394 po foret - pouce décimal, 11 po de longueur hors tout, 6-3/8 po de profondeur de coupe, 2 goujures, goujure hélicoïdale, 6-3/8 po de longueur goujure, désignation #3 cône Morse queue conique, 118 deg pointe, pointe radiale, coupe à droite , tranchant hss, liquide de refroidissement non traversant, hss, oxyde noir, matériaux applicables : fonte grise, acier allié, acier au carbone, acier à faible teneur en carbone et fonte nodulaire
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Applications |
| Cutting Depth | 6-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.0394 in |
| Drill Size - Fraction | 1 in |
| Finish | Black Oxide |
| Flute Length | 6-3/8 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 11 in |
| Point Type | Radial |
| Series | 1682 |
| Type | Regular Helix |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Shank Taper Designation | #3 Morse Taper |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Caractéristiques
- General purpose geometry with standard morse taper shank dimensions
- HSS substrate engineered for toughness and ideal for portable drilling and maintenance applications
- Black oxide finish for increased wear resistance and improved lubricity, reduced chip welding and galling
Guides & Manuels
Cle_Force_C20040_Catalog.pdf
Télécharger
