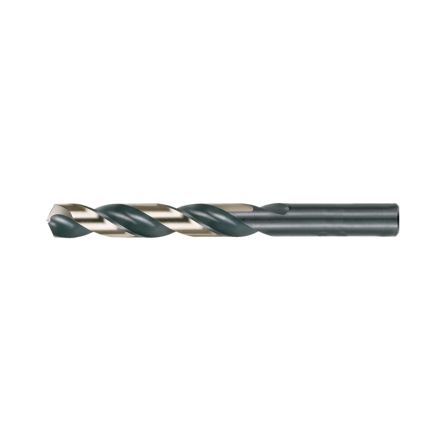

GRENNFIELD C74001 FORET 1MM STRAIGHT SHANK NOIR & OR
- GLD# 4293247376630169001
- MFG# C74001
- UPC 697334740018
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Cle-Line foret longueur jobber, à toute épreuve, gamme : 1878, métrique/impérial, 1 mm foret - métrique, 0,0394 po foret - pouce décimal, 34 mm de longueur hors tout, profondeur de coupe 5xd, 2 goujures, droite goujure hélicoïdale , 12 mm goujure longueur, 1 mm diam. x 22 mm l queue, queue droite, 135 deg point, point de partage, coupe à droite, tranchant hss, arrosage non traversant, hss, oxyde noir/or, matériaux applicables : acier allié, acier au carbone, fonte grise, acier à faible teneur en carbone et fonte nodulaire
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.0394 in |
| Finish | Black/Gold Oxide |
| Flute Length | 12 mm |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 34 mm |
| Point Type | Split |
| Series | 1878 |
| Shank Size | 1 mm Dia x 22 mm L |
| Shank Type | Straight |
| Type | Heavy Duty |
| Drill Diameter Measurement System | Metric/Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Drill Size - Metric | 1 mm |
| Point Angle | 135 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Caractéristiques
- 135 deg split point is self-centering for reduced thrust and easier penetration, preferred for stainless steels
- HSS substrate with heavy duty geometry
- Black and gold finish for enhanced operation and long drill life
