RUBAN,ISOLANT;1POX60YD type 27 27-1X36-1IN
- GLD# 4271441763440115000
- MFG# 7000132171
- UPC 00054007274766
Qté min. de commande 1
Description

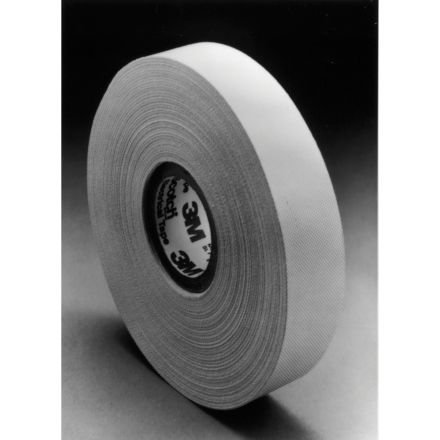

Scotch ruban isolant, 36 mètres de longueur, 1 po largeur, 7 mil dépaisseur, tissu de verre, blanc, noyau de 1 po de diamètre, adhésif en caoutchouc thermodurcissable, revêtement en tissu de verre, force dadhérence de 30 onces, 35 kilovolts, rigidité diélectrique 3000 v, résistance à la traction de 150 po²/lb, 302 deg f fonctionnement maximum, 0 deg f minimum de fonctionnement
Spécifications
| Couleur | White |
|---|---|
| UNSPSC | 31201518 |
| Length | 36 yd |
| Maximum Operating Temperature | 302 deg F |
| Minimum Operating Temperature | 0 deg F |
| Width | 1 in |
| Adhesion Strength | 30 oz |
| Dielectric Strength | 3000 V |
| Material Type | Glass Cloth |
| Tensile Strength | 150 sq-in/lb |
| Thickness | 7 mil |
| Voltage Rating | 35 kV |
| Adhesive Material | Thermosetting Rubber |
| Backing Material | Glass Cloth |
| Core Diameter | 1 in |
Caractéristiques
- 7 mil woven insulating glass cloth tape with pressure sensitive rubber thermosetting adhesive
- Designed to operate in 600 V dry applications requiring high mechanical strength and resistance to high temperatures
- Adhesive is specially designed and prepared to provide corrosion protection
- Edge tear-resistant, conformable and abrasion-resistant
- For use as a coil cover, anchor, banding and core, layer and crossover insulation
- Printable
