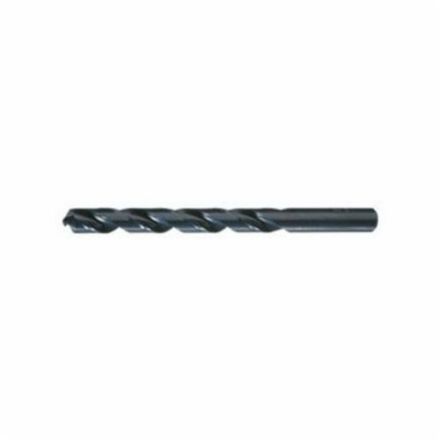

FORET 3/64 STRAIGHT SHANK
- GLD# 4179757118070363000
- MFG# C22644
- UPC 697334226444
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Cle-Line foret longueur jobber, gamme : 1899, impérial, 3/64 po foret - fraction, 0.0469 po foret - pouce décimal, 1-3/4 po de longueur totale, profondeur de coupe 5xd, 2 goujures, droite goujure hélicoïdale, 3/4 po goujure longueur, 3/64 po diam. X 15/16 po l queue, queue droite, 118 deg point, point radial, coupe à droite, tranchant hss, non à travers le liquide de refroidissement, hss, oxyde noir, matériaux applicables : acier allié, acier carbone, acier à faible teneur en carbone, fonte grise, fonte nodulaire et aluminium
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.0469 in |
| Drill Size - Fraction | 3/64 in |
| Finish | Black Oxide |
| Flute Length | 3/4 in |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 1-3/4 in |
| Point Type | Radial |
| Series | 1899 |
| Shank Size | 3/64 in Dia x 15/16 in L |
| Shank Type | Straight |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Aluminum, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Caractéristiques
- HSS substrate with general purpose geometry
- Black oxide finish for increased wear resistance and improved lubricity
