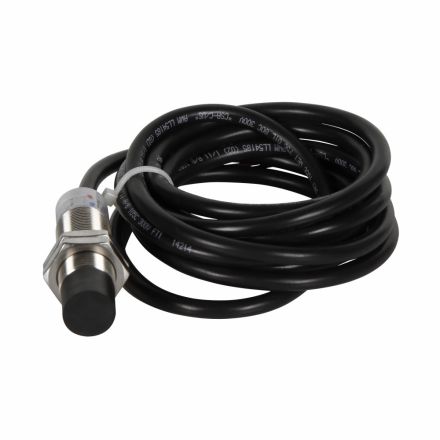

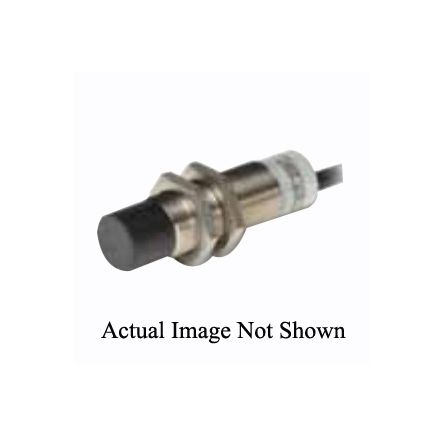

CAPTEUR DE PROXIMITÉ INDUCTIF ANALOGIQUE 18MM BLINDÉ 0-20MA ET 0-10V 7MM
- GLD# EATON-117677
- MFG# E59-A18A107D01-CV
- UPC 10786685104546
Qté min. de commande 1
Description
Capteur de proximité EATON, blindé droit, gamme : accuprox, méthode de détection inductive, distance de détection de 7 mm, mesure de 1 à 7 mm, position de détection finale, résolution de 40 um,
Spécifications
| Application | Commercial, Institutional Buildings, Structures, Electrical Assemblies, Panels and EOEMs, Stationary Machinery and Equipment - Factory, Part Positioning, Distance, Size and Thickness Measurement, General Inspection and Error Proofing, Such as Material Imp |
|---|---|
| Accuracy | <40 um |
| Amperage Rating | 0 to 20 mA |
| Connection Type | 3/4-Wire DC 4-Pin M12 |
| Enclosure Type | NEMA 4/4X/6/6P/12/13/IP67/IP69K |
| Material | Stainless Steel |
| Mounting Type | Flush |
| Output Type | Analog |
| Sensing Distance | 7 mm |
| Sensing Method | Inductive |
| Sensing Position | End |
| Series | AccuProx™ |
| Size | 18 mm Dia |
| Temperature Rating | -40 to 158 deg F |
| Type | Shielded Straight |
| Voltage Rating | 15 to 30 VDC |
| Measuring Range | 1 to 7 mm |
| Resolution | 40 um |
| Response Time | 5 ms |
Caractéristiques
- Extended linear sensing range of up to 25 mm three times longer than standard tubular analog inductive sensors
- High output resolution and repeatability for applications requiring precision sensing performance
- Robust stainless steel barrel, shock-resistant front cap, polycarbonate end bell and impact absorbing potting compound
- Ideal for extreme temperature or high pressure washdown environments
- High noise immunity of 20 V/m prevents many problems associated with electrical noise
