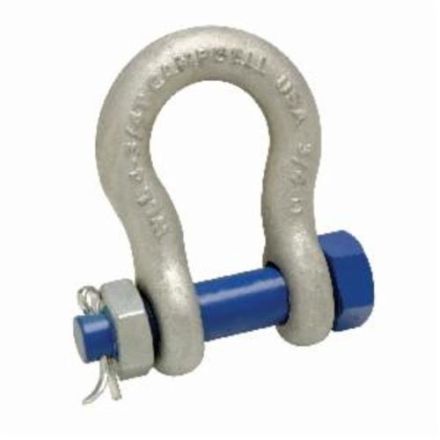

-MANILLE D'ANCRAGE BOULONNÉE 3/4", 4-3/4 T
- GLD# APEX-100639
- MFG# 5391235
- UPC 020418075568
Qté min. de commande 1
Description
Campbell anchor manille, gamme : 999-g, 4.75 tonnes, 3/4 po, goupille de 7/8 po diam, goupille de boulon, 2-13/16 po longueur intérieure, 1-13/16 po largeur intérieure, ouverture de 1-1/4 po, 1-3/4 po à œil dimension externe, forgé corps en acier au carbone, axe en acier allié, galvanisé
Spécifications
| UNSPSC | 24101641 |
|---|---|
| Load Capacity | 4.75 ton |
| Body Material | Drop Forged Carbon Steel |
| Eye Outer Size | 1-3/4 in |
| Finish | Galvanized |
| Inner Length | 2-13/16 in |
| Inner Width | 1-13/16 in |
| Opening Size | 1-1/4 in |
| Pin Diameter | 7/8 in |
| Pin Material | Alloy Steel |
| Pin Type | Bolt |
| Size | 3/4 in |
| Series | 999-G |
Caractéristiques
- Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 999 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- 6:1 design factor
- Pins and bolts are heat treated and made of alloy steel
