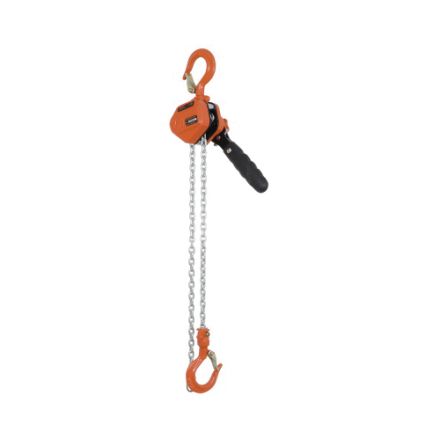

SERIE KLP, PALAN A LEVIER 1/4 TONNE X 5 PI USAGE INTENSIF
- GLD# 4329067208850665000
- MFG# 110803
- UPC 10059629879617
Qté min. de commande 1
Description
JET extracteur de chaîne à levier, à toute épreuve, 0.25 tonnes, hauteur de levage de 5 pi, 7.87 po minimum entre les hameçons, 0.Ouverture de crochet de 83 po, 44 lb de traction pour soulever, 5.7 po de longueur de levier, double cliquet weston/frein à disque
Spécifications
| UNSPSC | 24101602 |
|---|---|
| Brake Type | Dual Pawl Weston/Disc |
| Hook Opening | 0.83 in |
| Lifting Height | 5 ft |
| Load Capacity | 0.25 ton |
| Minimum Between Hooks | 7.87 in |
| Series | KLP |
| Type | Heavy Duty |
| Lever Length | 5.7 in |
| Pull to Lift Rated Load | 44 lb |
Caractéristiques
- High impact gear case and brake cover for heavy duty service
- Grade 100 load chain for greater strength
- Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
- Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Top and bottom safety hooks bend to warn of overloads
- Cast steel safety latches exceed industry standards
- Deformation indicators on hooks allow accurate measurement for easy maintenance
- Load tested to 150% of rated capacity with certificate
- Ideal for rigging, lifting, and horizontal pulling applications
Guides & Manuels
JET_110803_Specification_Sheet.pdf
TéléchargerJET_110803_Line_Drawing.pdf
TéléchargerJET_110803_User_Manual.pdf
Télécharger
