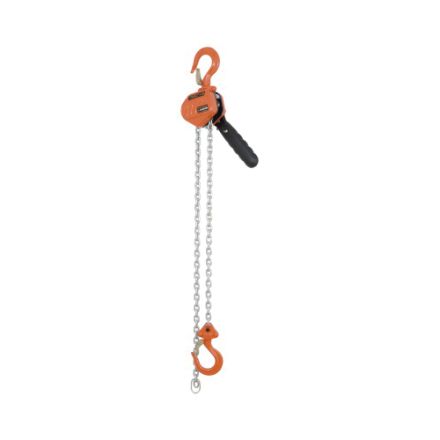

SERIE KLP, PALAN A LEVIER 1/2 TONNE X 5 PI USAGE INTENSIF
- GLD# 4330942873420375000
- MFG# 110804
- UPC 10059629879624
Qté min. de commande 1
Description
JET extracteur de chaîne à levier, à toute épreuve, 0.5 tonnes, hauteur de levage de 5 pi, 9.84 po minimum entre les crochets, 0.Ouverture de crochet de 96 po, 52.8 lb de traction pour soulever, 6.Longueur du levier 3 po, double cliquet weston/frein à disque
Spécifications
| UNSPSC | 24101602 |
|---|---|
| Brake Type | Dual Pawl Weston/Disc |
| Hook Opening | 0.96 in |
| Lifting Height | 5 ft |
| Load Capacity | 0.5 ton |
| Minimum Between Hooks | 9.84 in |
| Series | KLP |
| Type | Heavy Duty |
| Lever Length | 6.3 in |
| Pull to Lift Rated Load | 52.8 lb |
Caractéristiques
- High impact gear case and brake cover for heavy duty service
- Grade 100 load chain for greater strength
- Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
- Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Top and bottom safety hooks bend to warn of overloads
- Cast steel safety latches exceed industry standards
- Deformation indicators on hooks allow accurate measurement for easy maintenance
- Load tested to 150% of rated capacity with certificate
- Ideal for rigging, lifting, and horizontal pulling applications
Guides & Manuels
JET_110804_User_Manual.pdf
TéléchargerJET_110804_Specification_Sheet.pdf
Télécharger
