Marque
Campbell®
POULIE A FIXER SUR MUR 1-1/2''
- GLD# 4086329943810118000
- MFG# T7550501
- UPC 020418300028
Qté min. de commande 1
Description

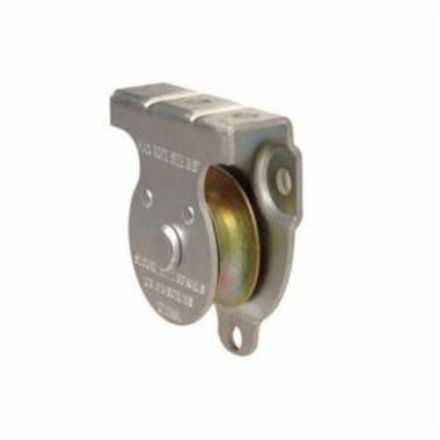

Campbell Wall/Ceiling Mount Pulley, Heavy Duty Single Sheave, 1-1/2 in, 100 lb, 1-1/2 in Sheave Outside Dia, 3/8 in Rope Dia, Die Cast Zinc Sheave/Steel Body, Zinc Plated
Spécifications
| UNSPSC | 24101613 |
|---|---|
| Sheave Outside Diameter | 1-1/2 in |
| Type | Heavy Duty Single Sheave |
| Size | 1-1/2 in |
| Rope Diameter | 3/8 in |
| Material | Die Cast Zinc Sheave/Steel Body |
| Load Capacity | 100 lb |
| Finish | Zinc Plated |
| Application | For indoor or outdoor use |
Caractéristiques
- Zinc plated to protect against rust and corrosion
- Powder metal bushing to extend pulley life and provide smooth operation
- For rope up-to 3/8 in or 1/2 in as noted
- Working load limit stamped on pulley body
- Mount wall and ceiling pulleys with 4d or 6d nails or #4 x 3/4 in screws
- Do not exceed the working load limit
- Do not use for overhead lifting or hoisting
Guides & Manuels
Campbell_T7105304_Catalog.pdf
