ENS. DE TARAUD 7/16-14 UNC
- GLD# 4210759426530182000
- MFG# C62056
- UPC 697334620563
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

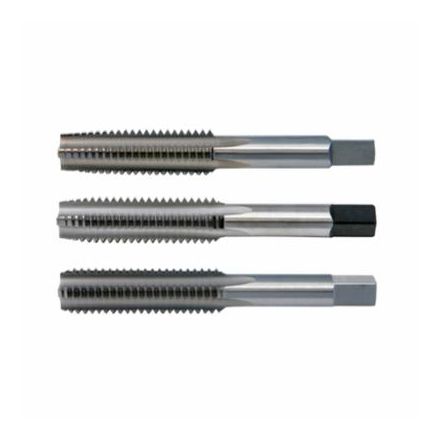

Main Cle-Line jeu de tarauds, standard goujure droite queue droite, gamme : 404, système de mesure : impérial, 3 pièces, 7/16-14 taille, norme de filetage unc, longueur de filetage 1-7/16 po, 3.1562 po de longueur hors tout, 4 goujures, coupe à droite, 0.Diamètre 323 po queue, fond/bouchon/chanfrein conique, limite de filetage h3, 0.4062 po lx 0.242 po w carré, hss, brillant, type demballage rose plastic unibox
Spécifications
| Application | For maintenance applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 3.1562 in |
| Series | 404 |
| Shank Diameter | 0.323 in |
| Thread Length | 1-7/16 in |
| Thread Limit | H3 |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Rose plastic® unibox |
| Size | 7/16-14 |
| Square Size | 0.4062 in L x 0.242 in W |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Caractéristiques
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
