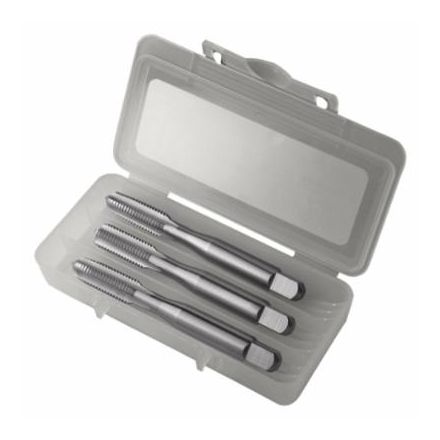

1/4-20NC HTGP H3 4F GP T-P-B HAND TAP SET
- GLD# GREEN-106256
- MFG# 342522
Qté min. de commande 1
Description
Greenfield Threading main jeu de tarauds, standard goujure droite queue droite, gamme : htgp, système de mesure : impérial, 3 pièces, taille 1/4-20, filetage unc standard, longueur de filetage 0,63 po, longueur totale 2-1/2 po, 4 goujures, coupe à droite, 0,255 po queue diamètre, fond/bouchon/chanfrein conique, limite de filetage h3, 0,3125 po l x 0,191 po l carré, hss, brillant, type demballage unibox rose plastic
Spécifications
| Application | For through hole and blind hole applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Series | HTGP |
| Shank Diameter | 0.255 in |
| Thread Length | 0.63 in |
| Thread Limit | H3 |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Rose Plastic® UniBox |
| Size | 1/4-20 |
| Square Size | 0.3125 in L x 0.191 in W |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Guides & Manuels
Greenfield_Threading_421909_Catalog.pdf
Télécharger
