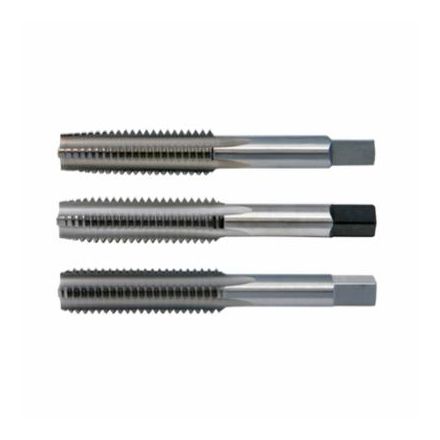

3/8-16NC 1699 CBN HAND TAP SET
- GLD# GREEN-124434
- MFG# C69428
Qté min. de commande 1
Description
Main Cle-Force jeu de tarauds, standard goujure droite queue droite, jeu : 1699, système de mesure : impérial, 3 pièces, taille 3/8-16, filetage standard, 1-1/4 po longueur de filetage, 2-15/16 po longueur totale, coupe à droite, 0.381 po file diamètre, fond/bouchon/chanfrein conique, 0.4375 po l x 0.286 po carré, acier au carbone, brillant, type demballage en plastique générique
Spécifications
| Application | For general purpose applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | Carbon Steel |
| Measurement System | Imperial |
| Overall Length | 2-15/16 in |
| Series | 1699 |
| Shank Diameter | 0.381 in |
| Thread Length | 1-1/4 in |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Generic Plastic Case |
| Size | 3/8-16 |
| Square Size | 0.4375 in L x 0.286 in W |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Caractéristiques
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
