TARAUD 1/2-13 #1 TAPER
- GLD# 4179961136710183000
- MFG# C62061
- UPC 697334620617
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

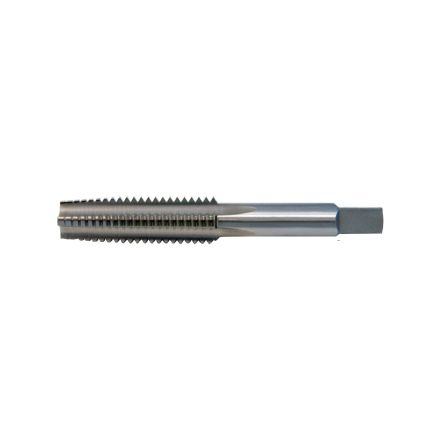

Cle-Line taraud à main à goujure droite, norme à usage général, gamme : 0401, système de mesure : impérial, standard de filetage sol/unc, fil 1/2-13, chanfrein conique, 4 goujures, hss, brillant, coupe à droite, 1.6562 po de longueur de filetage, longueur totale 3-3/8 po, 0.Diamètre 367 po queue, fonte, application de matériaux en acier et matériaux non ferreux, limite de filetage h3
Spécifications
| Application | For bottoming, through hole and maintenance applications |
|---|---|
| Chamfer Type | Tapered |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 3-3/8 in |
| Series | 0401 |
| Shank Diameter | 0.367 in |
| Thread Length | 1.6562 in |
| Thread Limit | H3 |
| Thread Size | 1/2-13 |
| Thread Standard | Ground/UNC |
| Type | General Purpose Standard |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Cast Iron, Non-Ferrous Materials, Steel |
| UNSPSC | 23241615 |
Guides & Manuels
Cle_Line_C01112_Catalog.pdf
Télécharger
