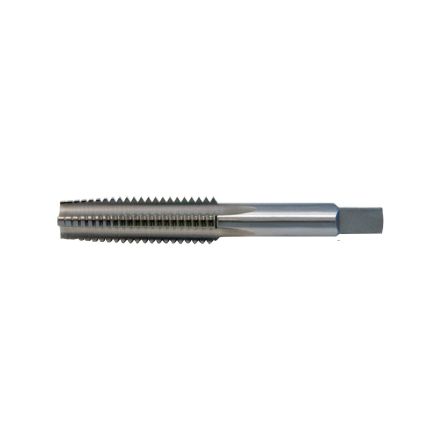

TAP HD FLUTE STR RH 1/4-20 H3 TAPERED
- GLD# 4179961327040183000
- MFG# C62029
- UPC 697334620297
Qté min. de commande 1
Description
Cle-line taraud à main à goujure droite, standard à usage général, gamme : 0401, système de mesure : standard de filetage impérial, rectifié/unc, filetage 1/4-20, chanfrein conique, 4 goujures, hss, brillant, coupe à droite, longueur de fil 1 po, 2-1/2 po longueur hors tout, 0.255 po queue diamètre, fonte, acier et matériaux non ferreux application des matériaux, limite de filetage h3
Spécifications
| Application | For bottoming, through hole and maintenance applications |
|---|---|
| Chamfer Type | Tapered |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Series | 0401 |
| Shank Diameter | 0.255 in |
| Thread Length | 1 in |
| Thread Limit | H3 |
| Thread Size | 1/4-20 |
| Thread Standard | Ground/UNC |
| Type | General Purpose Standard |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Cast Iron, Non-Ferrous Materials, Steel |
| UNSPSC | 23241615 |
