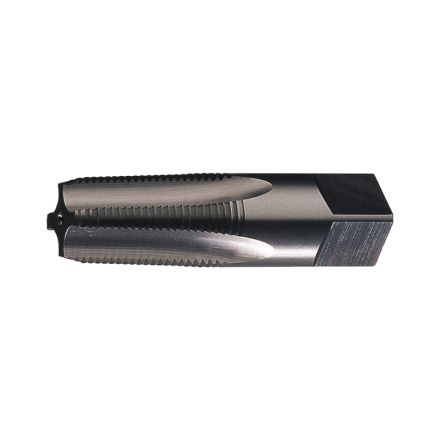

CLE-FORCE C69322 1686 USAGE GÀNÀRAL TARAUD TUYAU À GOUJURE DROITE, FILETAGE 1-1/4-11-1/2
- GLD# 4277844072070137000
- MFG# C69322
- UPC 697334693222
Qté min. de commande 1
Description
Cle-Force taraud pour tuyau, usage général goujure droite, gamme : 1686, système de mesure : impérial, filetage 1-1/4-11-1/2, filetage NPT standard, chanfrein semi-fond, 1-3/4 po de longueur de filetage, 4 po de longueur hors tout, 5 goujures, coupe à droite, 1-5/16 po de diamètre queue, 0,984 po carré, hss, brillant, crochet moyen
Spécifications
| Application | Thread Cutting, Through Hole, Construction, Maintenance, Repair, Operating and Industrial Applications |
|---|---|
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 5 |
| Overall Length | 4 in |
| Series | 1686 |
| Shank Diameter | 1-5/16 in |
| Thread Length | 1-3/4 in |
| Thread Size | 1-1/4-11-1/2 |
| Thread Standard | NPT |
| Type | General Purpose Straight Flute |
| Square Size | 0.984 in |
| Hook Type | Medium |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| UNSPSC | 23241615 |
Caractéristiques
- Ground thread for economical tapping
- Features regular NPT thread design
- Features interrupted thread for better lubrication and chip clearance
