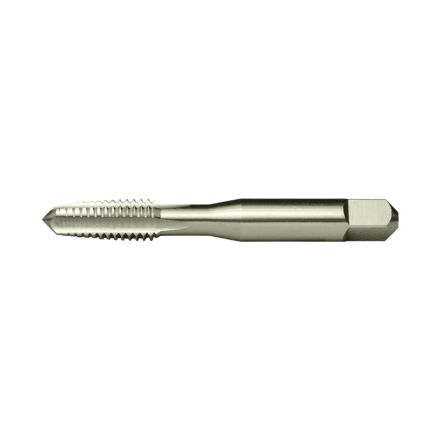

TARAUD M24X 3.00 # 1
- GLD# 4246254787130237000
- MFG# C54907
- UPC 697334549079
Qté min. de commande 1
Description
Cleveland taraud à main à goujure droite, norme à usage général, gamme : 1001, système de mesure : métrique, filetage rectifié standard, filetage m24x3, chanfrein conique, 4 goujures, hss, brillant, classe dajustement : 6h, coupe à droite, longueur de filetage 56,36 mm, longueur totale 124,62 mm, diamètre queue 19,3 mm, application de matériaux en fonte, acier, acier inoxydable et matériaux non ferreux, limite de filetage d8
Spécifications
| Application | For blind hole applications |
|---|---|
| Chamfer Type | Tapered |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Overall Length | 124.62 mm |
| Series | 1001 |
| Shank Diameter | 19.3 mm |
| Thread Length | 56.36 mm |
| Thread Limit | D8 |
| Thread Size | M24x3 |
| Thread Standard | Ground |
| Type | General Purpose Standard |
| Class of Fit | 6H |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Cast Iron, Non-Ferrous Materials, Stainless Steel, Steel |
| UNSPSC | 23241615 |
