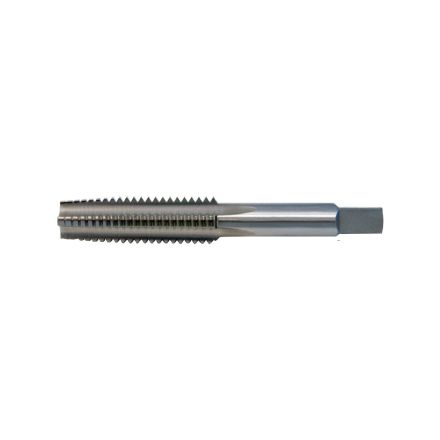

TARAUD 4-40 #1 TAPER
- GLD# 4253539639590099000
- MFG# C62001
- UPC 697334620013
Qté min. de commande 1
Description
Cle-Line taraud à main à goujure droite, standard à usage général, gamme : 0401, système de mesure : impérial, filetage rectifié/unc standard, filetage #4-40, chanfrein conique, 3 goujures, hss, brillant, coupe à droite, longueur de filetage 9/16 po, 1-7/8 po hors tout longueur, 0,141 po de diamètre queue, application de matériaux en fonte, en acier et en matériaux non ferreux, limite de filetage h2
Spécifications
| Application | For bottoming, through hole and maintenance applications |
|---|---|
| Chamfer Type | Tapered |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 3 |
| Overall Length | 1-7/8 in |
| Series | 0401 |
| Shank Diameter | 0.141 in |
| Thread Length | 9/16 in |
| Thread Limit | H2 |
| Thread Size | #4-40 |
| Thread Standard | Ground/UNC |
| Type | General Purpose Standard |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Cast Iron, Non-Ferrous Materials, Steel |
| UNSPSC | 23241615 |
