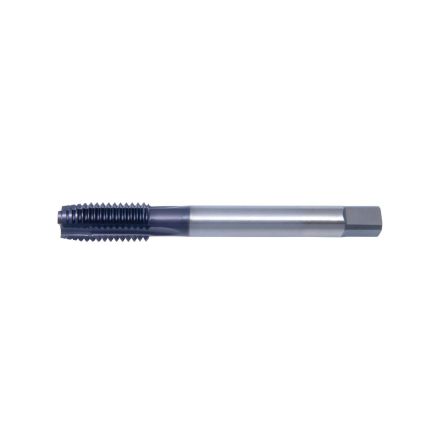

TARAUD M10x1.25 SP-PT BLACK OXYDE
- GLD# 4232649462970086356
- MFG# C96142
- UPC 697334961420
Qté min. de commande 1
Description
Cleveland Taraud à pointe spiral, haute performance universelle, gamme : pro-961sp, système de mesure : métrique, rectifié/filet fin standard, filetage m10x1,25, intermédiaire, 3 goujures, hss-e, corindon, classe dajustement : 6h, coupe à droite, longueur de filetage 20 mm, longueur totale 100 mm, diamètre queue 9,68 mm, longueur queue 11,18 mm, acier, acier inoxydable, matériaux non ferreux et durs application
Spécifications
| Application | For through hole applications |
|---|---|
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Finish/Coating | Steam Oxide |
| Material | HSS-E |
| Measurement System | Metric |
| Number of Flutes | 3 |

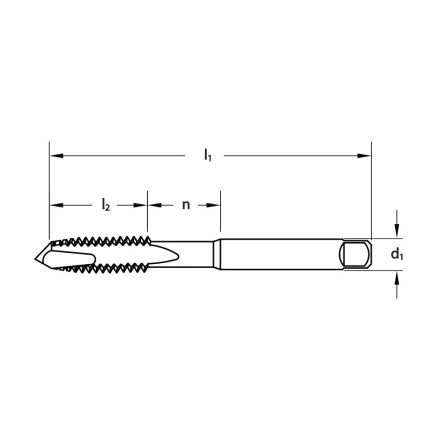

| Overall Length | 100 mm |
| Series | PRO-961SP |
| Shank Diameter | 9.68 mm |
| Thread Length | 20 mm |
| Thread Size | M10x1.25 |
| Thread Standard | Ground/Fine |
| Type | High Performance Universal |
| Shank Length | 11.18 mm |
| Class of Fit | 6H |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Hard Materials, Non-Ferrous, Stainless Steel, Steel |
| UNSPSC | 23241615 |
