TARAUD 3/4-10 SP-FL BLACK OXYDE
- GLD# 4232649462970086393
- MFG# C98128
- UPC 697334981282
Qté min. de commande 1
Description

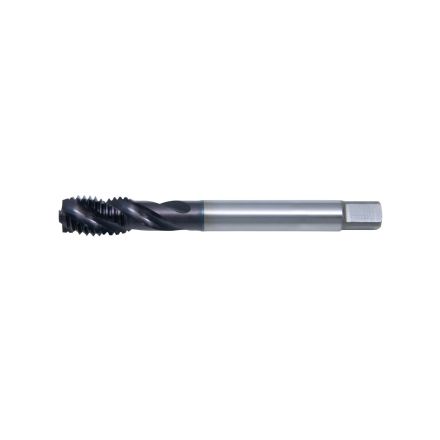

Cleveland Taraud à pointe spiral, haute performance universelle, gamme : pro-981sf, système de mesure : impérial, filetage rectifié/unc standard, filetage 3/4-10, chanfrein semi-fond, 4 goujures, hss-e, oxyde de vapeur, classe dajustement : 2b, coupe à droite, 1,1024 po de longueur de filetage, 4,9213 po de longueur totale, 0,59 po de diamètre queue, 0,69 po de longueur queue, acier, acier inoxydable, matériaux non ferreux et durs application
Spécifications
| Application | For blind hole applications |
|---|---|
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Finish/Coating | Steam Oxide |
| Material | HSS-E |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 4.9213 in |
| Series | PRO-981SF |
| Shank Diameter | 0.59 in |
| Thread Length | 1.1024 in |
| Thread Size | 3/4-10 |
| Thread Standard | Ground/UNC |
| Type | High Performance Universal |
| Shank Length | 0.69 in |
| Class of Fit | 2B |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Material Application | Hard Materials, Non-Ferrous, Stainless Steel, Steel |
| UNSPSC | 23241615 |
