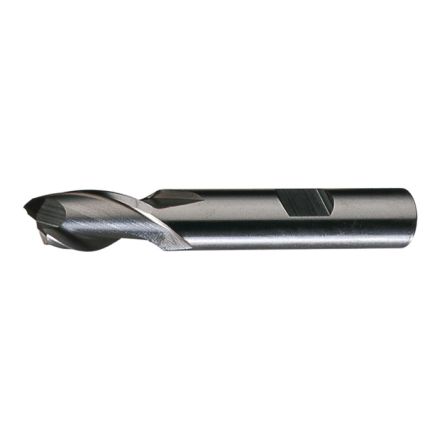

7/8 FRAISE 2 FL (ENDMILL) X 5/8 SHANK TiN
- GLD# 1000006119
- MFG# C33786
- UPC 697334337867
Qté min. de commande 1
Description
Cleveland fraise en bout, coupe centre usage général à bout simple bout carré, gamme : hg-2, coupeur de 7/8 po de diamètre, 4 po de longueur hors tout, 1-1/2 po de longueur de coupe, 2 goujures, goujure hélicoïdale, 5/8 po de queue diamètre , coupe à droite, angle dhélice 30 deg, droit/weldon flat queue, hss, étamé
Spécifications
| UNSPSC | 27112803 |
|---|---|
| Application | General Finishing Applications |

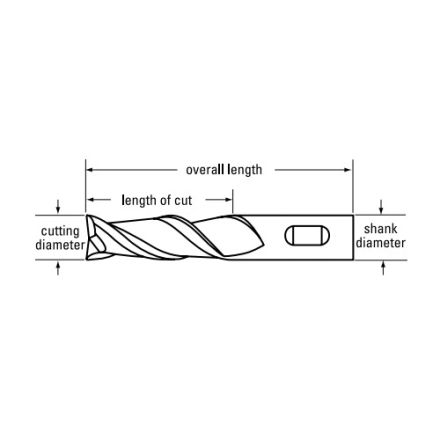

| Cutter Diameter | 7/8 in |
| Cutting Direction | Right Hand |
| Finish | TiN Coated |
| Flute Type | Spiral |
| Helix Angle | 30 deg |
| Length of Cut | 1-1/2 in |
| Material | HSS |
| Number of Flutes | 2 |
| Overall Length | 4 in |
| Series | HG-2 |
| Shank Diameter | 5/8 in |
| Shank Type | Straight/Weldon Flat |
| Type | Center Cutting General Purpose Single End Square End |
Caractéristiques
- 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- TiN (titanium nitride) coating in gold color intended for aggressive machining
- TiN coating increase machining speed 25 to 30% versus bright speeds
- Applicable on alloy steel, tool steel, carbon steel and cast iron
