FRAISE 1/2 4 FLUTE
- GLD# 1000013996
- MFG# C41525
- UPC 697334236252
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

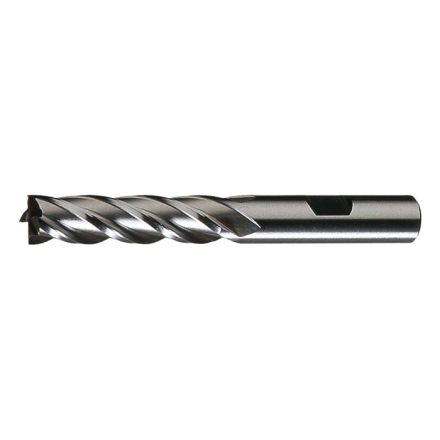

Cleveland fraise en bout, coupe centre usage général à bout simple bout carré, gamme : hg-4c, coupeur 1/2 po de diamètre, 3-1/4 po de longueur hors tout, 1-1/4 po de longueur de coupe, 4 goujures, goujure hélicoïdale, 1/2 po queue diamètre, coupe à droite, angle dhélice 30 deg, droit/weldon plat queue, hss, étamé
Spécifications

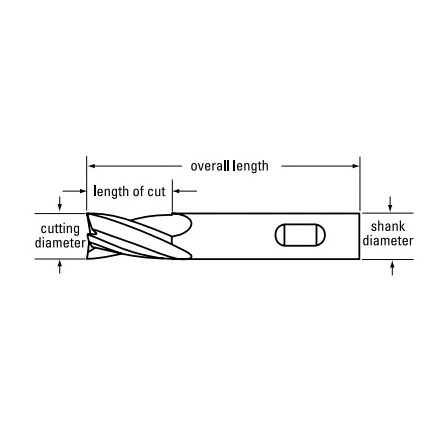

| UNSPSC | 27112803 |
|---|---|
| Application | General Finishing Applications |
| Cutter Diameter | 1/2 in |
| Cutting Direction | Right Hand |
| Finish | TiN Coated |
| Flute Type | Spiral |
| Helix Angle | 30 deg |
| Length of Cut | 1-1/4 in |
| Material | HSS |
| Number of Flutes | 4 |
| Overall Length | 3-1/4 in |
| Series | HG-4C |
| Shank Diameter | 1/2 in |
| Shank Type | Straight/Weldon Flat |
| Type | Center Cutting General Purpose Single End Square End |
Caractéristiques
- Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
- Multi-flute end mills have a heavy duty cross section for better rigidity
- Increased number of flutes mean more cutting edges, providing more cutting action
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- TiN (titanium nitride) coating in gold color intended for aggressive machining
- TiN coating increase machining speed 25 to 30% versus bright speeds
- Applicable on alloy steel, tool steel, cast iron and copper alloys
