PASTILLE A4G0300M03P02GMP KC5010
- GLD# 4311555050780243000
- MFG# 1952760
Qté min. de commande 1
Description

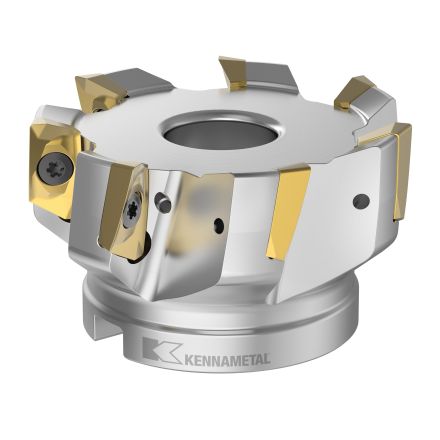

Kennametal Carré indexable épaulement fraise en bout, gamme : fraise 1-18, 2 en coupe diam., 1,575 po longueur hors tout, 0,7 en profondeur maximale de coupé, 5 inserts, compatibilité des inserts : ec18.., ep18.., 3/4 po dia. tige, code ansi : m1d200e1805s075l157, code iso : m1d200e1805s075l157, angle dattaque 0 deg, oui
Spécifications
| UNSPSC | 23242105 |
|---|---|
| Application | Blank Ramping, Face, Helical, Side and Shoulder Milling |
| ANSI Code | M1D200E1805S075L157 |
| ISO Code | M1D200E1805S075L157 |
| Series | Mill 1-18™ |
| Maximum Depth of Cut | 0.7 in |
| Insert Compatibility | EC18.., EP18.. |
| Overall Length | 1.575 in |
| Lead Angle | 0 deg |
| Shank Diameter | 3/4 in |
| Through Coolant (Yes/No) | Oui |
| Cutting Diameter | 2 in |
| Number of Inserts | 5 |
Caractéristiques
- Aggressive ramping angles
- Generates superior surface finish
- High rpm capabilities
