Marque
Kennametal®
PASTILLE CNMG432MS KCU25
- GLD# 4321962454850368000
- MFG# 4050454
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

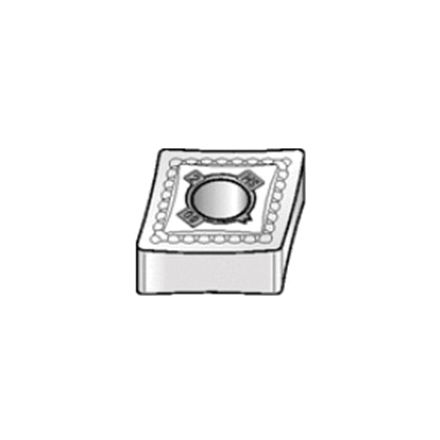

Kennametal® Turning Insert, Series: Kenloc™, CNMG Insert, 120404 Insert, Rhomboid, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, MS Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer_s Grade: KCU10, ANSI Code: CNMG431MS KCU10, ISO Code: CNMG120404MS KCU10, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-AlTiN Coated, Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel For Use On
Spécifications
| UNSPSC | 23242105 |
|---|---|
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KCU10 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
| Shape | Rhomboid |
| ISO Code | CNMG120404MS KCU10 |
| Thickness | 4.76 mm |
| Series | Kenloc™ |
| Material | Carbide |
| Manufacturer's Grade | KCU10 |
| Length | 12.9 mm |
| Insert Style | CNMG |
| Insert Size | 120404 |
| Hole Diameter | 5.16 mm |
| Corner Radius | 0.4 mm |
| Finish | PVD-AlTiN Coated |
| ANSI Code | CNMG431MS KCU10 |
| Chipbreaker | MS |
| Included Angle | 80 deg |
| Inscribed Circle | 12.7 mm |
| Relief Angle | 0 deg |
| Cutting Direction | Neutral |
Caractéristiques
- Medium geometry utilized in high temperature and stainless applications
