PASTILLE NT3RK KCU10
- GLD# 4325461927140963000
- MFG# 4175983
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

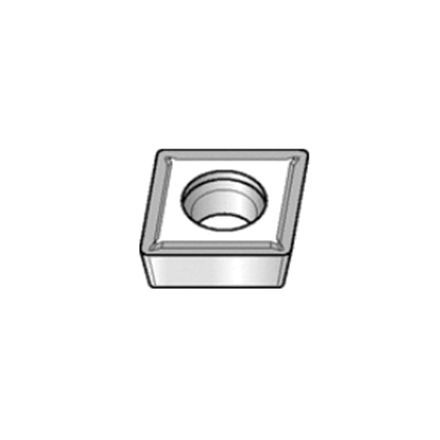

Kennametal Plaquette de tournage , à visser, plaquette cpmt, plaquette 09t304, losange, profondeur de passe maximale 1,25 mm, cercle inscrit 9,53 mm, épaisseur 3,97 mm, longueur 9,67 mm, râteau positif 5 deg, brise-copeaux lf, 0,4 mm rayon de bec, 4,4 mm Dia de trou, qualité fabricant : kcp10, code ansi : cpmt3251lf kcp10, code iso : cpmt09t304lf kcp10, 80 deg angle inclus, 11 deg dégagement cornière, carbure, revêtement cvd-ticn+al2o3, grade de matériau : c3/c7, à utiliser sur : fonte et acier
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CPMT3251LF KCP10 |
| Finish | CVD-TiCN+Al2O3 Coated |
| Hole Diameter | 4.4 mm |
| ISO Code | CPMT09T304LF KCP10 |
| Insert Size | 09T304 |
| Insert Style | CPMT |
| Length | 9.67 mm |
| Manufacturer's Grade | KCP10 |
| Material | Carbide |
| Material Grade | C3/C7 |
| Shape | Rhomboid |
| Thickness | 3.97 mm |
| Type | Screw-On |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 9.53 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 5 deg Positive |
| Relief Angle | 11 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KCP10 |
| For Use On | Cast Iron, Steel |
Caractéristiques
- Finishing geometry with light cutting action
- Used in multiple material groups
