PASTILLE DFT05T308DS KCU40
- GLD# 4333766555140245000
- MFG# 6025823
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

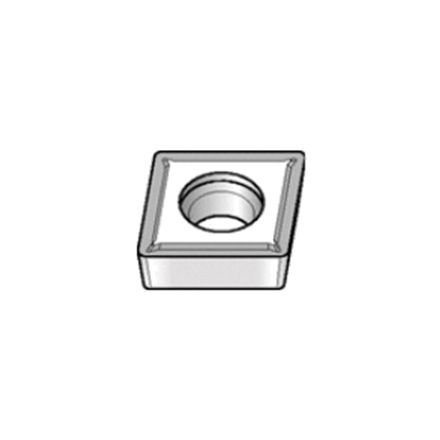

Kennametal Plaquette de tournage , à visser, plaquette ccmt, plaquette 060204, losange, profondeur de passe maximale 1,25 mm, cercle inscrit 6,35 mm, épaisseur 2,38 mm, longueur 6,45 mm, râteau positif 5 deg, brise-copeaux lf, 0,4 mm rayon de bec, 2,8 mm Dia de trou, qualité fabricant : kcp25, code ansi : ccmt2151lf kcp25, code iso : ccmt060204lf kcp25, 80 deg angle inclus, 7 deg dégagement cornière, carbure, revêtement cvd-ticn+al2o3, grade de matériau : c2/c3/c6/c7, à utiliser sur : fonte et acier
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CCMT2151LF KCP25 |
| Finish | CVD-TiCN+Al2O3 Coated |
| Hole Diameter | 2.8 mm |
| ISO Code | CCMT060204LF KCP25 |
| Insert Size | 060204 |
| Insert Style | CCMT |
| Length | 6.45 mm |
| Manufacturer's Grade | KCP25 |
| Material | Carbide |
| Material Grade | C2/C3/C6/C7 |
| Shape | Rhomboid |
| Thickness | 2.38 mm |
| Type | Screw-On |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 6.35 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 5 deg Positive |
| Relief Angle | 7 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KCP25 |
| For Use On | Cast Iron, Steel |
Caractéristiques
- Finishing geometry with light cutting action
- Used in multiple material groups
