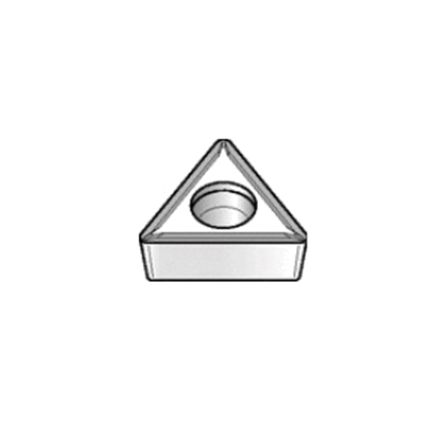

PASTILLE TPGT2151LF KC5010
- GLD# KEN-108996
- MFG# 1310943
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , à visser, plaquette tpgt, 110204 plaquette, triangulaire, 1.profondeur de coupe maximale de 25 mm, 6.cercle inscrit 35 mm, 2.38 mm dépaisseur, longueur 11 mm, 5 deg râteau positif, si brise-copeaux, 0.4 mm rayonne de bec, 2.9 mm Dia de trou, qualité du fabricant : kc5010, code ansi : tpgt2151lf kc5010, code iso : tpgt110204lf kc5010, angle inclus 60 deg, angle 11 deg dégagement, coupe neutre, carbure, revêtement pvd-altin, grade de matériau : c3/c4, à utiliser sur : fonte, alliages haute température, métaux non ferreux, acier et acier inoxydable
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | TPGT2151LF KC5010 |
| Finish | PVD-AlTiN Coated |
| Hole Diameter | 2.9 mm |
| ISO Code | TPGT110204LF KC5010 |
| Insert Size | 110204 |
| Insert Style | TPGT |
| Length | 11 mm |
| Manufacturer's Grade | KC5010 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Shape | Triangular |
| Thickness | 2.38 mm |
| Type | Screw-On |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 60 deg |
| Inscribed Circle | 6.35 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 5 deg Positive |
| Relief Angle | 11 deg |
| Cutting Direction | Neutral |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KC5010 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
Caractéristiques
- Finishing geometry with light cutting action
- Used in multiple material groups
