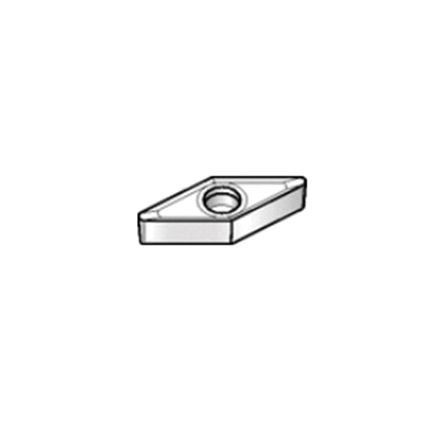

PASTILLE VBGT331HP KC5410
- GLD# KEN-110410
- MFG# 1623278
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , à visser, plaquette vbgt, plaquette 160404, losange, 1.profondeur de coupe maximale de 25 mm, 9.cercle inscrit de 53 mm, 4.76 mm dépaisseur, 16.longueur 61 mm, 15 deg râteau positif, HP brise-copeaux, 0.4 mm rayonne de bec, 4.4 mm Dia de trou, qualité du fabricant : kc5410, code ansi : vbgt331hp kc5410, code iso : vbgt160404hp kc5410, angle inclus 35 deg, angle 5 deg dégagement, carbure, revêtement pvd-tib2, grade de matériau : c3/c4, à utiliser sur : Non-Ferrous Metals
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | VBGT331HP KC5410 |
| Finish | PVD-TiB2 Coated |
| Hole Diameter | 4.4 mm |
| ISO Code | VBGT160404HP KC5410 |
| Insert Size | 160404 |
| Insert Style | VBGT |
| Length | 16.61 mm |
| Manufacturer's Grade | KC5410 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Shape | Rhomboid |
| Thickness | 4.76 mm |
| Type | Screw-On |
| Chipbreaker | HP |
| Corner Radius | 0.4 mm |
| Included Angle | 35 deg |
| Inscribed Circle | 9.53 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 15 deg Positive |
| Relief Angle | 5 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KC5410 |
| For Use On | Non-Ferrous Metals |
Caractéristiques
- Finishing geometry with high positive rake face for chip control in long chipping materials
