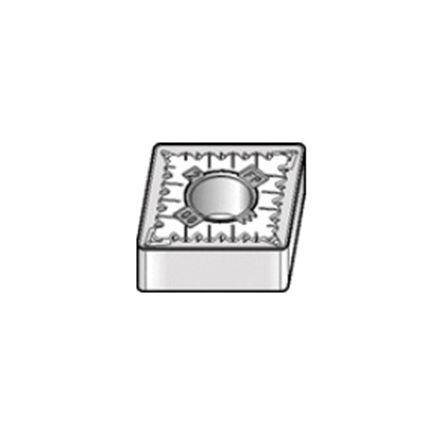

PASTILLE CNMG431FP KC5010
- GLD# KEN-112009
- MFG# 1817572
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , jeu : kenloc, insert cnmg, 120404 insert, losange, 1.profondeur de coupe maximale de 25 mm, 12.cercle inscrit 7 mm, 4.76 mm dépaisseur, 12.longueur 9 mm, 15 deg râteau positif, brise-copeaux fp, 0.4 mm rayonne de bec, 5.16 mm Dia de trou, qualité fabricant : kc5010, code ansi : cnmg431fp kc5010, code iso : cnmg120404fp kc5010, 80 deg angle inclus, 0 deg dégagement angle, carbure, revêtement pvd-altin, grade de matériau : c3/c4, à utiliser sur : fonte, alliages haute température, métaux non ferreux, acier et acier inoxydable
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CNMG431FP KC5010 |
| Finish | PVD-AlTiN Coated |
| Hole Diameter | 5.16 mm |
| ISO Code | CNMG120404FP KC5010 |
| Insert Size | 120404 |
| Insert Style | CNMG |
| Length | 12.9 mm |
| Manufacturer's Grade | KC5010 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Series | Kenloc™ |
| Shape | Rhomboid |
| Thickness | 4.76 mm |
| Chipbreaker | FP |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 12.7 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 15 deg Positive |
| Relief Angle | 0 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KC5010 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
