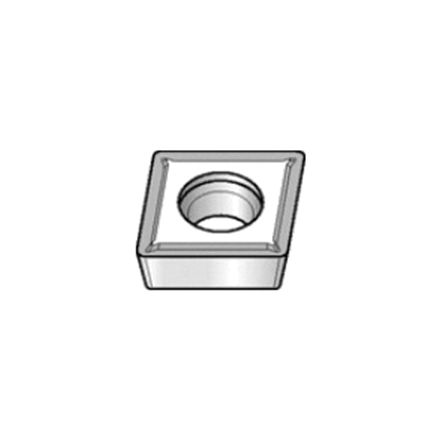

PASTILLE CPMT2151LF KC5010
- GLD# KEN-112816
- MFG# 1871013
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , plaquette cpmt, plaquette 060204, losange, 1.profondeur de coupe maximale de 25 mm, 6.Cercle inscrit de 35 mm, 2.38 mm dépaisseur, 6.longueur 45 mm, 5 deg râteau positif, si brise-copeaux, 0.4 mm rayon de bec, 2.9 mm Dia de trou, qualité du fabricant : kc5010, code ansi : cpmt2151lf kc5010, code iso : cpmt060204lf kc5010, angle inclus 80 deg, angle 11 deg dégagement, coupe neutre, carbure, revêtement pvd-altin, grade de matériau : c3/c4, à utiliser sur : fonte, alliages haute température, métaux non ferreux, acier et acier inoxydable
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CPMT2151LF KC5010 |
| Finish | PVD-AlTiN Coated |
| Hole Diameter | 2.9 mm |
| ISO Code | CPMT060204LF KC5010 |
| Insert Size | 060204 |
| Insert Style | CPMT |
| Length | 6.45 mm |
| Manufacturer's Grade | KC5010 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Shape | Rhomboid |
| Thickness | 2.38 mm |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 6.35 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 5 deg Positive |
| Relief Angle | 11 deg |
| Cutting Direction | Neutral |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KC5010 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
Caractéristiques
- Finishing geometry with light cutting action
