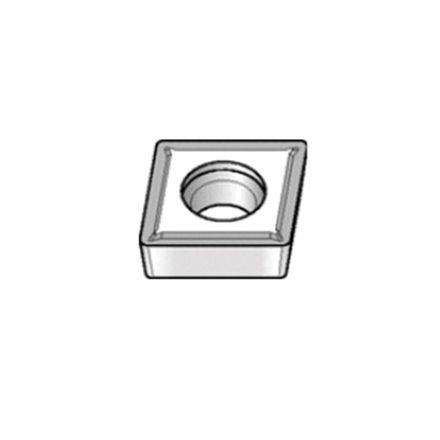

PASTILLE CCMT3251LF KC5025
- GLD# KEN-116980
- MFG# 2425773
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , à visser, gamme : modbore, insert ccmt, insert 09t304, rhomboïde, 1.profondeur de coupe maximale de 25 mm, 9.Cercle inscrit de 53 mm, 3.97 mm dépaisseur, 9.67 mm de longueur, 5 deg râteau positif, lf brise-copeaux, 0.4 mm rayon de bec, 4.4 mm Dia de trou, qualité du fabricant : kc5025, code ansi : ccmt3251lf kc5025, code iso : ccmt09t304lf kc5025, 80 deg angle inclus, 7 deg dégagement angle, carbure, revêtement pvd-altin, grade de matériau : c2/c6, à utiliser sur : fonte, alliages haute température, Non-Ferrous Metals, acier et acier inoxydable
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CCMT3251LF KC5025 |
| Finish | PVD-AlTiN Coated |
| Hole Diameter | 4.4 mm |
| ISO Code | CCMT09T304LF KC5025 |
| Insert Size | 09T304 |
| Insert Style | CCMT |
| Length | 9.67 mm |
| Manufacturer's Grade | KC5025 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Series | ModBORE™ |
| Shape | Rhomboid |
| Thickness | 3.97 mm |
| Type | Screw-On |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 9.53 mm |
| Maximum Depth of Cut | 1.25 mm |
| Rake | 5 deg Positive |
| Relief Angle | 7 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KC5025 |
| For Use On | Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel, Steel |
Caractéristiques
- Finishing geometry with light cutting action
- Used in multiple material groups
