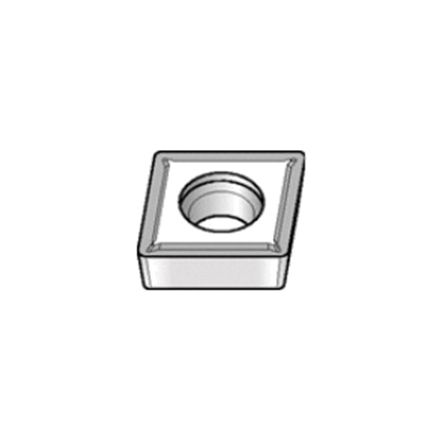

PASTILLE CCMT3251LF KCM25B
- GLD# KEN-138054
- MFG# 5596450
Qté min. de commande 1
Description
Kennametal Plaquette de tournage , à visser, jeu : Beyond prise, insert ccmt, insert 09t304, losange, 9.cercle inscrit de 53 mm, 3.97 mm dépaisseur, 9.longueur 67 mm, brise-copeaux lf, 0.4 mm rayonne de bec, 4.4 mm Dia de trou, qualité du fabricant : kcm25b, code ansi : ccmt3251lf kcm25b, code iso : ccmt09t304lf kcm25b, angle inclus 80 deg, angle 7 deg dégagement, carbure, revêtement cvd-ticn+al2o3+tiocn, à utiliser sur : acier et acier inoxydable
Spécifications
| UNSPSC | 23242105 |
|---|---|
| ANSI Code | CCMT3251LF KCM25B |
| Finish | CVD-TiCN+Al2O3+TiOCN Coated |
| Hole Diameter | 4.4 mm |
| ISO Code | CCMT09T304LF KCM25B |
| Insert Size | 09T304 |
| Insert Style | CCMT |
| Length | 9.67 mm |
| Manufacturer's Grade | KCM25B |
| Material | Carbide |
| Series | Beyond™ Drive™ |
| Shape | Rhomboid |
| Thickness | 3.97 mm |
| Type | Screw-On |
| Chipbreaker | LF |
| Corner Radius | 0.4 mm |
| Included Angle | 80 deg |
| Inscribed Circle | 9.53 mm |
| Relief Angle | 7 deg |
| Through Coolant (Yes/No) | Non |
| Manufacturers Grade | KCM25B |
| For Use On | Stainless Steel, Steel |
Caractéristiques
- Finishing geometry with light cutting action
- Used in multiple material groups
