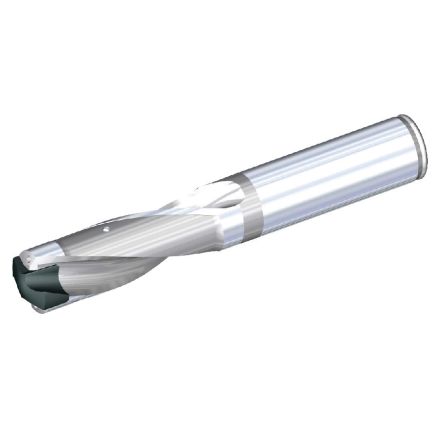

FORET PASTILLE KSEM1063R3SSF125
- GLD# KEN-109197
- MFG# 1505125
Qté min. de commande 1
Description
Kennametal Corps modulaire foret, gamme : ksem, capacité de perçage : 1.0626 à 1.0823 po, 3.31 po de profondeur foret, 1-1/4 po de dia. tige, 3-1/4 po de longueur queue, cylindrique avec plat/bride queue, 8-3/4 po de longueur totale, 5-1/2 po foret longueur du corps, 3xd rapport longueur de foret/dia., 1/8-27 body/1/4-18 queue filetage du trou de refroidissement dextrémité
Spécifications
| UNSPSC | 23242106 |
|---|---|
| Series | KSEM™ |
| Overall Length | 8-3/4 in |
| Shank Type | Cylindrical with Flat/Flange |
| Shank Diameter | 1-1/4 in |
| Through Coolant (Yes/No) | Non |
| Shank Length | 3-1/4 in |
| Drill Body Length | 5-1/2 in |
| Drill Depth | 3.31 in |
| Drill Depth by Diameter Ratio | 3xD |
| Drilling Capacity | 1.0626 to 1.0823 in |
| Coolant Hole Thread | 1/8-27 Body/1/4-18 Shank End |
Caractéristiques
- Annealed steel bodies for reliable drilling in regular and extended drilling depths with unmatched tool life, even in demanding conditions
- Very rigid pocket seat KSEM™ offers a four wall pocket providing insert stability, hole quality and increased tool life
- Through coolant close to the cutting edge for improved tool life, hole finish and chip removal
- Insert blades must be of the same seat size as the body it should be used on
- For each seat size, there is a preferred choice (Best Fit) of bodies for a particular insert diameter
- Overhang of the insert to the body shall not exceed 0.0098 in (0.25 mm) per side
- Higher overhang is possible, but will compromise performance, rigidity and efficient chip evacuation
