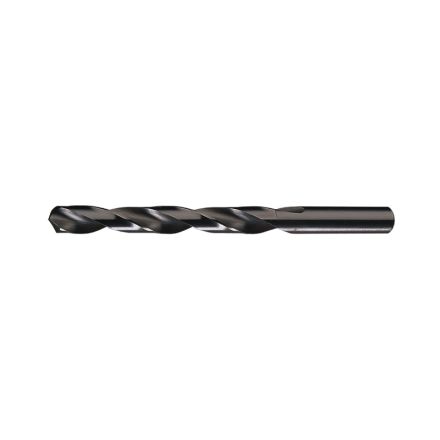

FORET QUEUE CYL.HSS 4.5MM
- GLD# 9882999
- MFG# 47277
- UPC 662355472774
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Chicago-Latrobe foret longueur jobber, usage général, gamme : 150, impérial/métrique, 4.5 mm foret - métrique, 0.1772 po foret - pouce décimal, 80 mm de longueur hors tout, profondeur de coupe 5xd, 2 goujures, droite goujure hélicoïdale, 47 mm goujure longueur, 4.4 mm diam. X 33 mm l queue, queue droite, 118 deg point, point radial, coupe à droite, tranchant hss, non à travers le liquide de refroidissement, hss, oxyde noir, matériaux applicables : acier au carbone et fonte
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.1772 in |
| Finish | Black Oxide |
| Flute Length | 47 mm |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 80 mm |
| Point Type | Radial |
| Series | 150 |
| Shank Size | 4.4 mm Dia x 33 mm L |
| Shank Type | Straight |
| Type | General Purpose |
| Drill Diameter Measurement System | Metric/Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Drill Size - Metric | 4.5 mm |
| Point Angle | 118 deg |
| Applicable Materials | Carbon Steel, Cast Iron |
Caractéristiques
- General purpose geometry for drilling in a wide range of operating conditions and materials
