Marque
Cle-Force™
1681 1-9/32 HS BLK 1/2IN 3FLTS SHK S&D DR
- GLD# GREEN-123819
- MFG# C68724
Qté min. de commande 1
Description

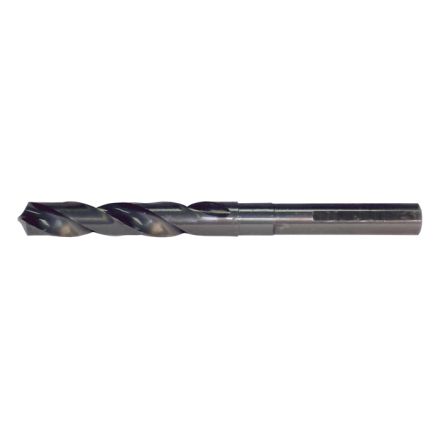

Cle-Force™ Silver _ Deming Drill, Series: 1681, 1-9/32 in Drill - Fraction, 1.2812 in Drill - Decimal Inch, 6 in Overall Length, 3-1/8 in Cutting Depth, 2 Flutes, Spiral Flute, 3-1/8 in Flute Length, 1/2 in Shank, Flat/Reduced Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Cast Iron and Steel
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Applications |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 1.2812 in |
| Drill Size - Fraction | 1-9/32 in |
| Finish | Steam Oxide |
| Flute Length | 3-1/8 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 6 in |
| Point Type | Radial |
| Series | 1681 |
| Shank Size | 1/2 in |
| Shank Type | Flat/Reduced |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Non |
| Point Angle | 118 deg |
| Applicable Materials | Cast Iron, Steel |
Guides & Manuels
Cle_Line_C01112_Catalog.pdf
Télécharger
