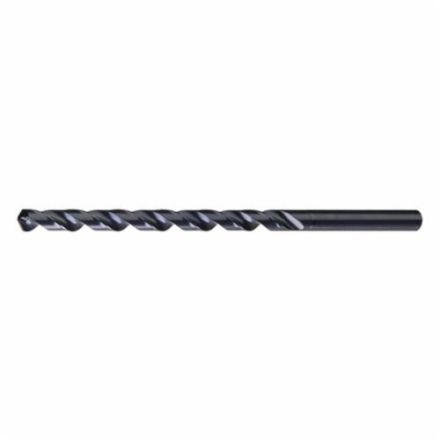

1/8 950E EXTRA LGTH DR-8
- GLD# GREEN-111228
- MFG# C09657
Qté min. de commande 1
Description
Cleveland foret long, usage général hélice ordinaire, gamme : 950e, 1/8 po foret - fraction, 0.125 po foret - pouce décimal, 8 po de longueur hors tout, profondeur de coupe 5-1/2 po, 2 goujures, goujure hélicoïdale, 5-1/2 po goujure longueur, 1/8 po queue, queue droite, 118 deg point, entaille k/point radial, coupe à droite, tranchant hss, hss, black oxide/steam oxide, matériaux applicables : acier à outils allié, acier au carbone, fonte, bas carbone, acier inoxydable et métaux ferreux, spécifications respectées : asme b94.11m, pas de liquide de refroidissement
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | For long reach and deeper drilling depth |
| Cutting Depth | 5-1/2 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.125 in |
| Drill Size - Fraction | 1/8 in |
| Finish | Black Oxide/Steam Oxide |
| Flute Length | 5-1/2 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 8 in |
| Point Type | K-Notched/Radial |
| Series | 950E |
| Shank Size | 1/8 in |
| Shank Type | Straight |
| Type | General Purpose Regular Helix |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Specifications Met | ASME B94.11M |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Tool Steel, Carbon Steel, Cast Iron, Ferrous Metals, Low Carbons, Stainless Steel |
Caractéristiques
- HSS provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide prevents chip building, galling and welding on the work piece
