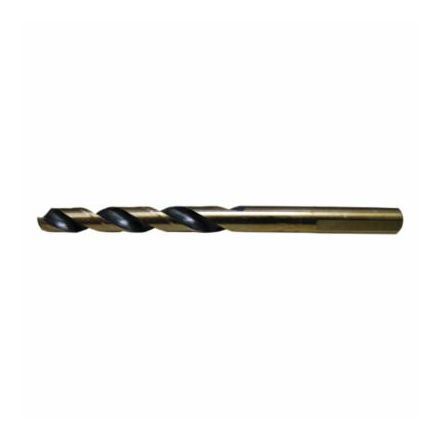

DRILL LG MECHANICS 31/64IN 0.4844IN HSS
- GLD# 4203156863580304006
- MFG# C68489
- UPC 697334684893
Qté min. de commande 1
Description
Longueur de la mécanique Cle-Force foret, à toute épreuve, jeu : 1620, 31/64 po foret - fraction, 0.4844 po foret - pouce décimal, longueur totale 4-7/8 po, profondeur de coupe 3-1/4 po, 2 goujures, goujure hélicoïdale, 3-1/4 po goujure longueur, 31/64 po queue, droit aplati queue, 135 deg point, point de partage, coupe à droite, tranchant hss, hss, noir/or, matériaux applicables : fonte/acier inoxydable/acier
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 3-1/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.4844 in |
| Drill Size - Fraction | 31/64 in |
| Finish | Black/Gold |
| Flute Length | 3-1/4 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 4-7/8 in |
| Point Type | Split |
| Series | 1620 |
| Shank Size | 31/64 in |
| Shank Type | Straight Flatted |
| Type | Heavy Duty |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Non |
| Point Angle | 135 deg |
| Applicable Materials | Cast Iron/Stainless Steel/Steel |
Caractéristiques
- 135 deg split point is self-centering, for reduced thrust and easier penetration
- Black and gold finish for enhanced operation and long drill life
- Sizes above 11/64 in feature three flats for tighter chucking
