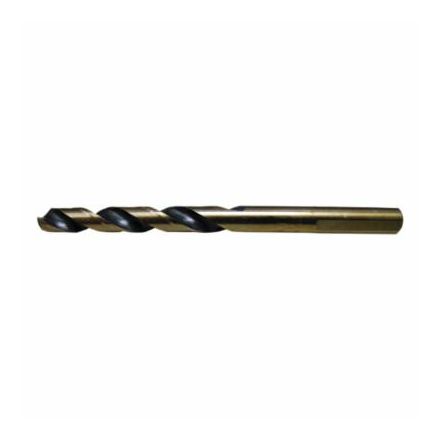

DRILL LG MECHANICS 7/64IN 0.1094IN HSS
- GLD# 4203245318490181000
- MFG# C68465
- UPC 697334684657
Qté min. de commande 1
Description
Cle-Force Mécanique longueur foret, à toute épreuve, gamme : 1620, 7/64 po foret - fraction, 0,1094 po foret - pouce décimal, 2-3/8 po de longueur totale, 1-5/16 po de profondeur de coupe, 2 goujures, goujure hélicoïdale, 1-5/16 po de goujure longueur, 7/64 po de queue, queue droite, 135 deg point, point fendu, coupe à droite, hss tranchant, hss, noir/or, matériaux applicables : fonte/acier inoxydable/acier
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 1-5/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.1094 in |
| Drill Size - Fraction | 7/64 in |
| Finish | Black/Gold |
| Flute Length | 1-5/16 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 2-3/8 in |
| Point Type | Split |
| Series | 1620 |
| Shank Size | 7/64 in |
| Shank Type | Straight |
| Type | Heavy Duty |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Non |
| Point Angle | 135 deg |
| Applicable Materials | Cast Iron/Stainless Steel/Steel |
Caractéristiques
- 135 deg split point is self-centering, for reduced thrust and easier penetration
- Black and gold finish for enhanced operation and long drill life
