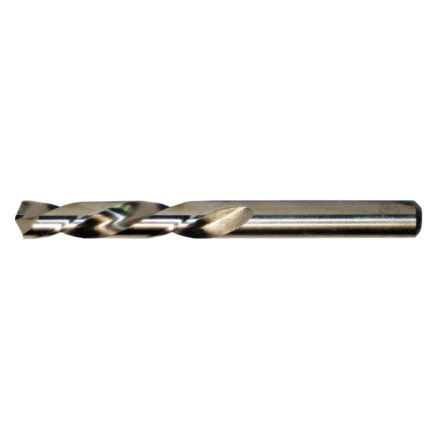

FORET 7/64 COBALT A GAUCHE
- GLD# 4245134549420130000
- MFG# C30507
- UPC 697334305071
Qté min. de commande 1
Description
Longueur de la mécanique cle-line foret, à toute épreuve, gamme : 1880, 7/64 po foret - fraction, 0.1094 po foret - pouce décimal, 2-3/8 po longueur hors tout, profondeur de coupe 1-5/16 po, 2 goujures, goujure hélicoïdale, 1-5/16 po goujure longueur, 7/64 po queue, queue droite, pointe 135 deg, pointe fendue, sens de coupe à gauche, tranchant hss-co, cobalt/hss, paille/oxyde dor, matériaux applicables : acier inoxydable/alliage de titane/acier/fonte/acier trempé
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | Asme b94.11m |
| Cutting Depth | 1-5/16 in |
| Cutting Direction | Left Hand |
| Cutting Edge Material | HSS-Co |
| Drill Size - Decimal Inch | 0.1094 in |
| Drill Size - Fraction | 7/64 in |
| Finish | Straw/Gold Oxide |
| Flute Length | 1-5/16 in |
| Flute Type | Spiral |
| Material | Cobalt/HSS |
| Overall Length | 2-3/8 in |
| Point Type | Split |
| Series | 1880 |
| Shank Size | 7/64 in |
| Shank Type | Straight |
| Type | Heavy Duty |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Non |
| Point Angle | 135 deg |
| Applicable Materials | Stainless Steel/Titanium Alloy/Steel/Cast Iron/Hardened Steel |
Caractéristiques
- 135 deg split point for faster, easier drill penetration
- Superior rigidity in portable drilling
