1899 4.25MM GP JOBBER BLKOX
- GLD# GREEN-110377
- MFG# C01338
Qté min. de commande 1
Description

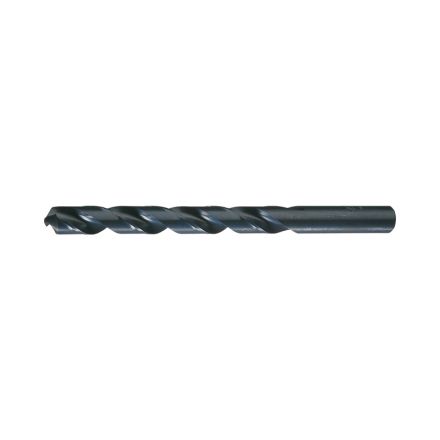

Cle-Line foret longueur jobber, gamme : 1899, métrique/impérial, 4.25 mm foret - métrique, 0.1673 po foret - pouce décimal, 75 mm de longueur totale, profondeur de coupe 5xd, 2 goujures, à droite goujure hélicoïdale, longueur 43 mm goujure, 4.25 mm diam. X 32 mm l file dattente, file droite, 118 deg point, point radial, coupe à droite, tranchant hss, arrosage direct, hss, oxyde noir, matériaux applicables : acier allié, acier au carbone, acier à faible teneur en carbone, fonte grise, fonte nodulaire et aluminium
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.1673 in |
| Finish | Black Oxide |
| Flute Length | 43 mm |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 75 mm |
| Point Type | Radial |
| Series | 1899 |
| Shank Size | 4.25 mm Dia x 32 mm L |
| Shank Type | Straight |
| Drill Diameter Measurement System | Metric/Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Drill Size - Metric | 4.25 mm |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Aluminum, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Caractéristiques
- HSS substrate with general purpose geometry
- Black oxide finish for increased wear resistance and improved lubricity
