Marque
Cle-Line®
1604 1/2 BLK&GOLD HD 135S/P JOB
- GLD# GREEN-124152
- MFG# C69070
Qté min. de commande 1
Description

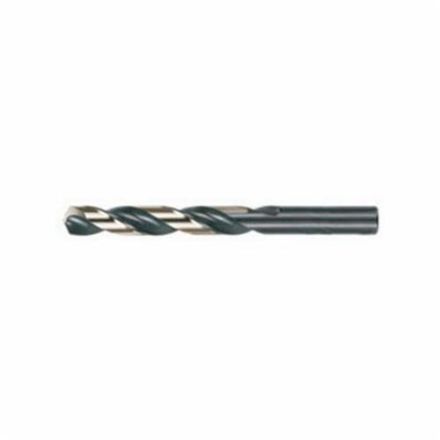

Cle-Line® Cle-Force™ Jobber Length Drill Bit, Heavy Duty, Series: 1604, Imperial, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 6 in Overall Length, 4-1/2 in Cutting Depth, 2 Flutes, Right Spiral Flute, 4-1/2 in Flute Length, 1/2 in Dia x 1-1/2 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black/Gold Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel and Nodular Cast Iron
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Application | General Purpose Drilling and Maintenance Applications |
| Cutting Depth | 4-1/2 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.5 in |
| Drill Size - Fraction | 1/2 in |
| Finish | Black/Gold Oxide |
| Flute Length | 4-1/2 in |
| Flute Type | Right Spiral |
| Material | HSS |
| Overall Length | 6 in |
| Point Type | Split |
| Series | 1604 |
| Shank Size | 1/2 in Dia x 1-1/2 in L |
| Shank Type | Straight |
| Type | Heavy Duty |
| Drill Diameter Measurement System | Imperial |
| Number of Flutes | 2 |
| Through Coolant (Yes/No) | Oui |
| Point Angle | 135 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron |
Caractéristiques
- 135 deg split point is self-centering for reduced thrust and easier penetration, preferred for stainless steels
- HSS substrate with heavy duty geometry
- Black and gold finish for enhanced operation and long drill life
