TW 3/8DR 10-80 FTLBS

GLD#
PROTO-104166
MFG#
J6005C
UPC
662679135928

Temps de livraison estimé

24 à 48h

2 en stock

401,36 $ / chaque

Qté min. de commande 1

Description

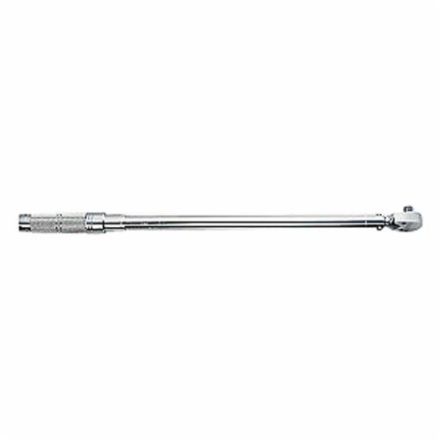

Proto clé dynamométrique style micromètre, gamme : c gamme, 3/8 po prise, 16 à 80 pi-lb, tête fixe, graduations : 0.5 pi-lb, longueur totale 15 po, sens horaire/sens horaire, +/-3% en continu, +/-6% de précision dans le sens antihoraire, réglage : remise à zéro automatique, 50000 cycles minimum, indicateur de clic sonore, poignée embout moleté/vissable, asme b107.14m spécifications respectées, acier, entièrement poli

Spécifications

Plus d'infos
UNSPSC	27111715
Handle Type	Knurled/Screw-On End Cap
Overall Length	15 in
Specifications Met	ASME B107.14M
Application	Industrial Torque, General Industry, Heavy Equipment and Maintenance Applications
Material	Steel
Finish	Full Polished
Accuracy	+/-3% CW, +/-6% CCW
Drive Size	3/8 in
Head Type	Fixed
Series	C Series
Torque Range	16 to 80 ft-lb
Indicator Type	Audible Click
Rotation Type	CW/CCW
Graduations	0.5 ft-lb
Minimum Number of Cycles	50000
Setting	Automatic Reset

Caractéristiques

Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
This Proto® torque wrench is made from high grade steel for strength and durability
Positive locking mechanism to dial and lock in desired torque
Thin head design to allow access in tight areas
Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
For strength and durability
