1/2 Std. Lubricator Metal Bowl
- GLD# 9891738
- MFG# L26-04AMB
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

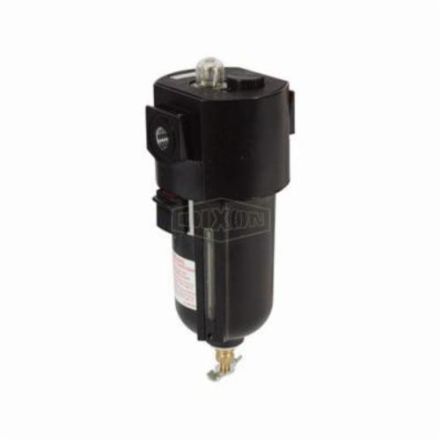

Graisseur standard wilkerson by dixon economic, jeu : l26, 1/2 po npt/bspp-g, 128 pied cube standard par minute, 200 lb/po-ca, bol en zinc, 32 à 150 deg f, zinc
Spécifications
| UNSPSC | 27131604 |
|---|---|
| Series | L26 |
| Flow Rate | 128 scfm |
| Material | Zinc |
| Port Size | 1/2 in NPT/BSPP-G |
| Pressure Range | 200 psi |
| Adjustment Range | 32 to 150 deg F |
| Bowl Material | Zinc |
Caractéristiques
- 10 oz bowl
- Adjustable oil feed
- Quick disconnect metal bowl guard with integral safety latch
- Siphon tube filter provides clean lubricant downstream
- Metal bowl has sight gauge with brass petcock drain
- The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery
- If flow increases or decreases, the oil delivery rate will increase or decrease proportionally
- Can be filled under pressure
- For all Wilkerson® lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, that is Mobil DTE light or comparable oil, do not use any synthetic oil or oils containing additives or solvents
