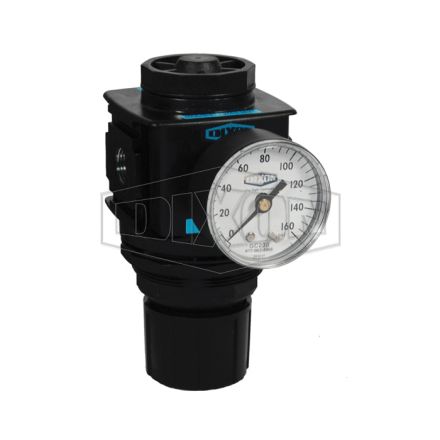

3/4"STANDARD REGULATOR W/GAUGE D: 242
- GLD# DIXON-128121
- MFG# R28-06RG
Qté min. de commande 1
Description
Wilkerson by Dixon Détendeur , norme dauto-décharge, gamme : R28, 3/4 po NPT/BSPP-G, 176 pied cube standard par minute, 0 à 125 psig Réglable, 32 à 150 deg F, Zinc
Spécifications
| Series | R28 |
|---|---|
| Flow Rate | 176 scfm |
| Material | Zinc |
| Port Size | 3/4 in NPT/BSPP-G |
| Pressure Range | 0 to 125 psig Adjustable |
| Temperature Rating | 32 to 150 deg F |
| Type | Self-Relieving Standard |
| Application | For increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise |
Caractéristiques
- (2) 1/4 in NPT gauge ports located on the front and rear faces of the body, these ports may be used as additional regulated ports or for pressure gauges
- To increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
