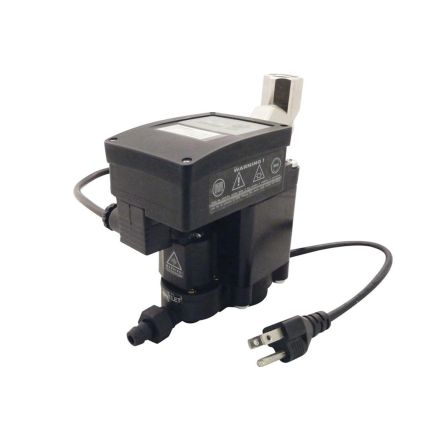

PURGEUR AUTO.639 SCFM 1/2(F)NPTCORD. EL. LOGIDRAIN
- GLD# TOP-104573
- MFG# 59.252
- UPC 774679033118
Qté min. de commande 1
Spécifications
| Pressure Rating | 230 psi |
|---|---|
| Series | S59 |
| Material | Polyamide/Stainless Steel |
| Temperature Rating | 1 to 60 deg C |
| Type | Zero Air Loss |
| Dimensions | 155 mm H x 69 mm W x 163 mm D |
| Compressor Performance | 639 scfm |
| Connection Size | 1/2 in FNPT |
| Filter Performance | 6391 scfm |
| Refrigeration Dryer Performance | 1278 scfm |
| Voltage Rating | 115 VAC |
Caractéristiques
- No wastage of compressed air
- Electronic condensate drains with digital level control
- Intelligent logic based on an 8-bit microprocessor recording events on an integral flash memory
- Easy-lock revolving connection
- Adjustable for vertical and/or horizontal connections
- Integrated filter to collect contaminated condensate
- Easy to clean and maintain
- Remote alarm connection
- Receiver with treatment resistent to most aggressive condensates, like those of oil-free compressors
- Fast easy-lock connection
