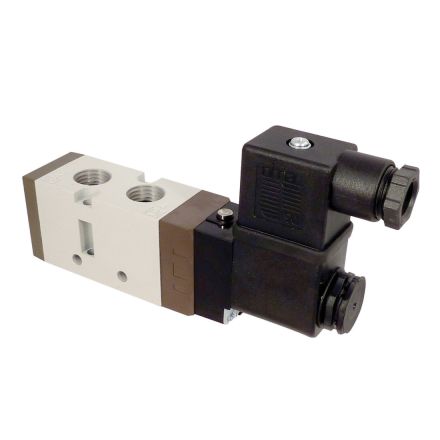

VALVE 1 SOLENOÃDE 110VAC 5/2 3/8NPT OPTIMA
- GLD# 9937082
- MFG# 80.970
- UPC 774679809706
Qté min. de commande 1
Description
TOPRING électrovanne simple, électrique compact haut débit, gamme : optimaux, port 3/8 po fnpt, 22 à 145 lb/po-ca pression, 5 à 60 deg c, 5 façons, 2 positions, actionneur à bouton poussoir, corps en aluminium anodisé, softgoods en caoutchouc
Spécifications
| UNSPSC | 40141605 |
|---|---|
| Body Material | Anodized Aluminum |
| Port Size | 3/8 in FNPT |
| Pressure Rating | 22 to 145 psi |
| Series | OPTIMA |
| Temperature Rating | 5 to 60 deg C |
| Softgoods Material | Rubber |
| Type | Electrical Compact High Flow |
| Number of Positions | 2 |
| Number of Ways | 5 |
| Actuator Type | Push Button |
Caractéristiques
- Solenoid manual override button shifts the valve without electrical power
- Standard connector (DIN-type)
- Electrical coil can be turned 360 deg in 90 deg increments to accommodate most installation requirements
- OPTIMA air control valves offer high flow performance and reliability
- Quick response
- Highly reliable spool technology
- Designed for in-line or bar manifolding
- A maintained electrical signal shifts the single solenoid valve, when the signal is removed, the valve returns to its normal positions
- These valves can be used to provide pilot signals for larger valves
- Softgoods material - oil-resistant rubber lip gaskets seal
