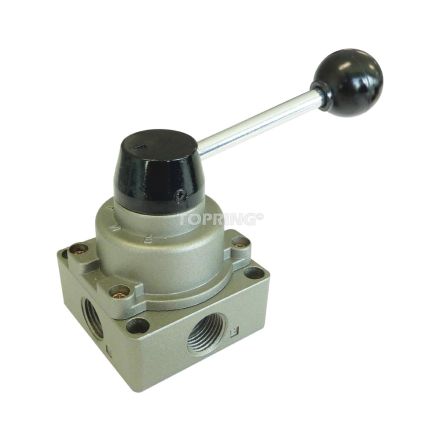

VALVE MANUELLE/MANETTE 4/3 1/4NPT OPTIMA
- GLD# TOP-105991
- MFG# 80.930
- UPC 774679809300
Qté min. de commande 1
Description
TOPRING valve de commande manuelle, gamme : optima s80, 1/4 po fnpt, 0 à 116 lb/po-ca, 5 à 60 deg c, 0.42 cv, 4 façons, 3 postes, port central fermé, médias : air filtré, actionneur de levier rotary, corps en aluminium anodisé, capuchons dextrémité en aluminium anodisé, bobine en aluminium, garniture de pièces internes en acier inoxydable/laiton, caoutchouc
Spécifications
| UNSPSC | 40141609 |
|---|---|
| Application | For use to activate double acting cylinders |
| Body Material | Anodized Aluminum |
| Flow Rate | 0.42 Cv |
| Port Size | 1/4 in FNPT |
| Pressure Rating | 0 to 116 psi |
| Series | OPTIMA S80 |
| Temperature Rating | 5 to 60 deg C |
| Trim Material | Anodized Aluminum End Caps, Aluminum Spool, Stainless Steel/Brass Internal Parts |
| Media | Filtered Air |
| Softgoods Material | Rubber |
| Number of Positions | 3 |
| Number of Ways | 4 |
| Port Type | Closed Center |
| Actuator Type | Rotary Lever |
Caractéristiques
- Compact design
- Leakproof operation
- Long service life
- Low operator effort
- 90 deg operation angle
- OPTIMA air control valves offer high flow performance and reliability
- High flow
- Quick response
- Highly reliable spool technology
- Designed for in-line or bar manifolding
